The “Steinbeis-Forschungszentrum Systementwurf und Test” can provide comprehensive equipment directly or in the context of a cooperation, which offer short-term and extensive testing for in-house and customer development.

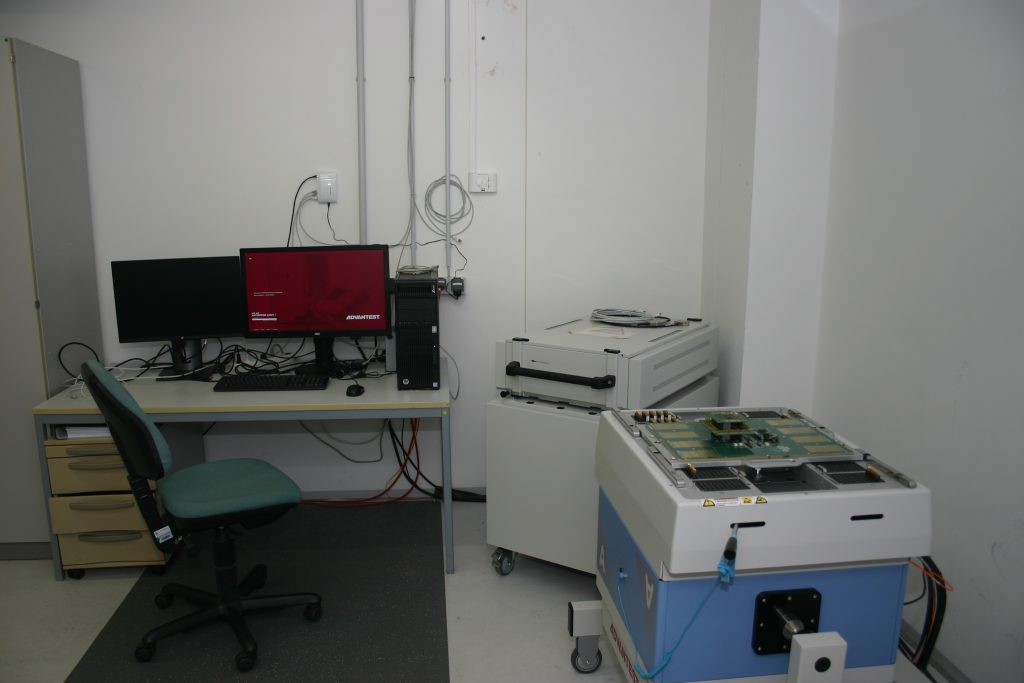

Advantest 93K
- Test Head A
- Digital: 4 Pin Scale 1600 cards
- upto 512 usable I/O Pins
- 16 MByte parallel vector memory
- Maximum data rate100Mbps
- (licensable up to 1600Mbps)
- V range standard: -3V … +8V
- V range highvoltage: -6V … +16V
- Overall timing accuracy: <200ps
- Analog:1 MBAV8+ Source / Measure unit
- 4 Source, 4 Measure
- Source selectable functions: LF, HF, VHF, V source, PMU, HP-PMU
- Measure selectable functions: LF Digitizer, VHF Digitizer
- DPS: 1 DPS 128 card with 64 high current / 64 high voltage channels
- Calibration robot for digital and analog available
- UNIVERSAL LOADBOARD
- Used for prototyping test solutions
- 384 available I/O pins
- 64 available DPS channels
EMC-Measuring-Chamber
- Mobile measuring Chamber for testing of samples bodies in the frequency range from 100 MHz to 6 GHz (lining with foam absorbers and Ferrite tiles).
- Interfaces: RF / LAN / USB / FO and IEC 60320 outlets (C13)/inlets (C14) for mains-powered test items
- Suitable for implementing emitted/immunity to interference analysis
- Signal generator for generating interference signals
- Spectrum analyser for the measurement of emitted interference
LTX Credence D10
- Instrument slots for variable configurations, from single to multi site, from digital-only to mixed-signal
- Digital instruments featuring 96 channels with 200 Mbps on any channel
- DSP control with 4 channels
- High-density analog instruments with 16 or 72 channels of high-precision DPS, voltage / current source and measurement capabilities
